Simple Arduino ohmmeter - February 15, 2015

Description:

This simple Arduino ohmmeter is a very easy project, which requires only few components: an Arduino, a breadboard, 3 jumper wires and a few resistors. Wire all the components as shown in the wiring diagram below, download the code and use it.

Downloads:

Arduino code

Wiring diagram:

Click wiring diagram to enlarge.

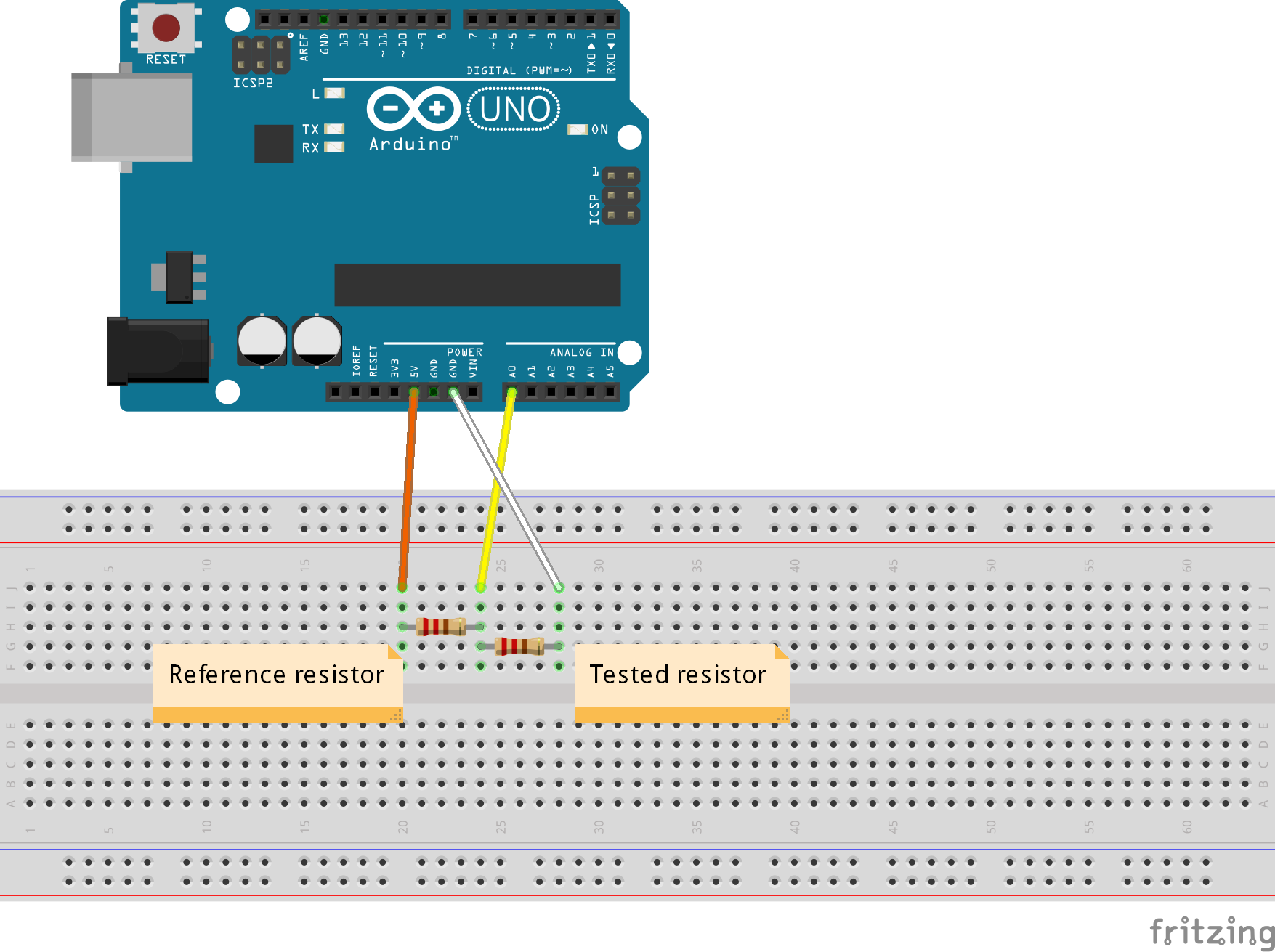

Arduino ohmmeter - circuit diagram
